Two quotes for the same PEEK, PEI or PPSU drawing can differ by a margin that labor rates alone cannot explain. The gap usually sits in material utilization, tooling amortization, inspection burden, and in what each supplier silently assumed about grade and tolerance. This guide is written for US medical-device procurement and engineering teams evaluating suppliers for precision polymer components. It is an evaluation guide, not a regulatory submission guide, and it asserts no certification status for any supplier.
Why the Material Decision and the Process Decision Cannot Be Separated
A resin data sheet describes a grade of material, not a finished part. Drying, melt history, tool design, machining parameters, annealing, packaging and inspection all sit between the pellet and the component on your line. A supplier can hold compliant resin documentation and still ship a part that fails your functional requirement, because the certificate says nothing about how the polymer was processed.
That is why material and process have to be decided together. Picking PEEK and then choosing a route on price alone produces the familiar surprises: a tool that cannot hold a callout, a machined lot that moves after inspection, or a molded lot whose shrinkage was never characterized for that grade. The request for quotation should carry the material record and the process expectation in the same package.
PEEK, PEI, and PPSU: What Procurement Should Demand From the Material Record
The three polymers are usually introduced by reputation: PEEK for demanding mechanical and wear applications, PEI for dimensionally stable structural and electrical parts, PPSU for components expected to survive repeated high-temperature cleaning. Treat those reputations as the start of a design conversation, not as a specification. The properties that decide your part belong to a specific grade and must be confirmed against the resin supplier's data sheet for that grade.
Put the grade on the drawing, not the family name
A purchase order that says "PEEK" is not a controlled requirement. Unfilled, glass-filled and carbon-filled grades of the same polymer behave differently in machining, in molding and in service. The drawing, the purchase order and the incoming inspection plan should carry the same identifier: resin manufacturer, grade designation, and any additive or color requirement.
Ask for the resin supplier's documents for that grade
Biocompatibility and regulatory documentation is issued by the resin manufacturer for a specific grade. Ask for that documentation and confirm the grade it references matches the grade on your drawing. Where the part is intended for a medical application, the suitability assessment remains yours; a supplier's statement that a material is "medical grade" does not replace it.
Treat colorant, lubricant and release agent as change-controlled
A color change is a material change, and so is a switch in lubricant or an added release agent. These adjustments are rarely visible on the invoice and can alter appearance and behavior. Put them in the change-control clause explicitly and require notification before the change, not after. Material substitution is the quietest cost-down in high-performance polymer supply: it survives incoming inspection while the part still measures correctly, and surfaces later in a validation failure.
CNC Machining or Precision Injection Molding? A Decision Framework
The process decision follows volume, geometry and how much design change you still expect. The table below is the version we use in quotation review; it opens the supplier conversation rather than replacing engineering judgment.
| Consideration | CNC machining from stock | Precision injection molding |
|---|---|---|
| Economic volume | Prototype and low volume; bridge lots | Repeating demand that amortizes tooling |
| Geometry | Undercuts, asymmetric features, deep pockets | Drafted parts with uniform walls |
| Material utilization | High scrap fraction from expensive stock | Low scrap per part once stable |
| Tooling | Fixturing only | Tool design, gating and cooling set feasibility |
| Design change | Fast; edit the program | Costly; modify or re-cut the tool |
| Inspection | Part-by-part checks practical | Needs a defined sampling and CTQ plan |
Read unit price against material utilization

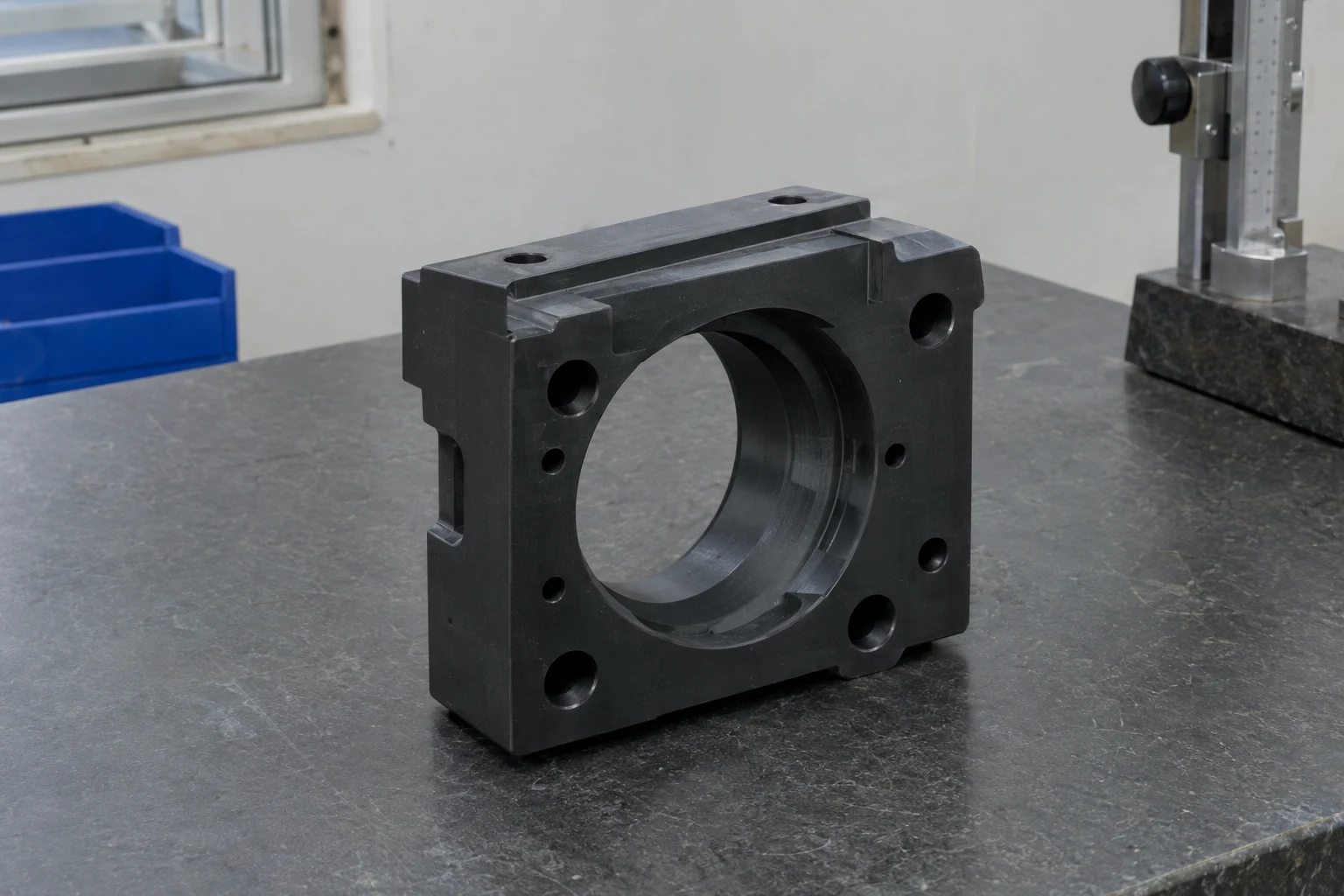

Machining a PEEK, PEI or PPSU component from bar or plate removes most of the stock as chip. When the material is a large share of the cost, a low hourly rate does not produce a low part price. Ask for the stock size and utilization assumption behind a machined quote.
Tooling is a gate, not a formality
Gate location, draft, wall uniformity, ejection and cooling determine whether a tool can hold the tolerances your drawing asks for. Before releasing a tool, ask for a documented review against your CTQ features, and confirm who holds the tool design record.

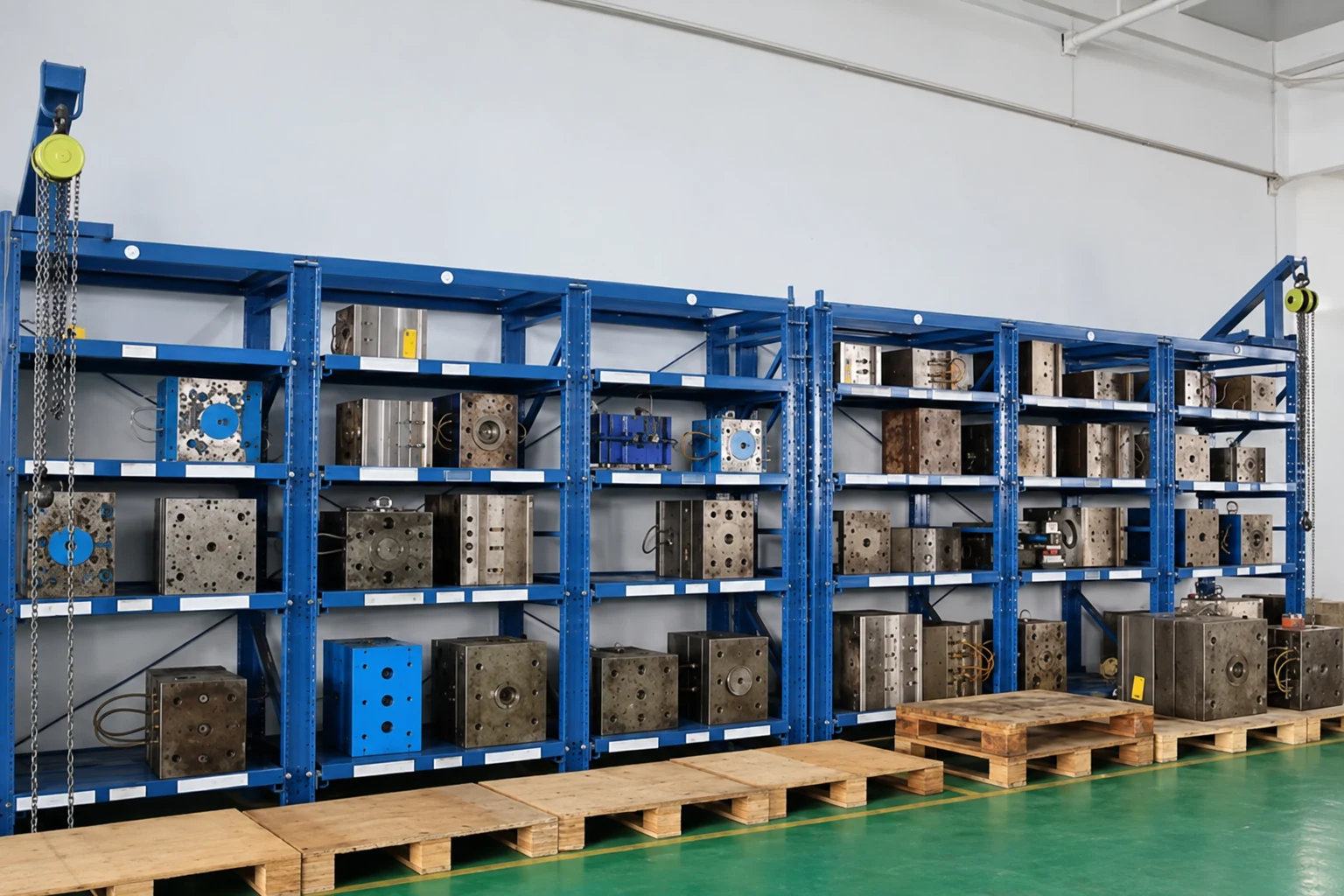

Customer-owned molds need a compatibility review first
A transferred tool is a variable, not a given. Condition, cavitation, repair history and whether the current tolerances were ever achievable on that tool all need review before a quote or a run. A supplier that quotes a transferred mold without asking for tool history is quoting an assumption. For many programs the sensible route is hybrid: machine prototypes and bridge lots, then commit to tooling once the drawing stops moving.
Assessing Tolerances Without Over-Specifying
The most expensive habit in precision polymer procurement is tightening every dimension. Blanket tolerances raise piece price, slow first-article qualification and obscure the requirement that governs function.
Start from critical-to-quality features
Identify the small set of features - often one to five on a component - that govern fit, function or assembly, and mark the rest as reference. This is the critical-to-quality approach Protolabs applies in its quotation and inspection workflow, and the logic travels beyond any single supplier: the buyer states what matters and inspection effort follows.
Specify the measurement method with the tolerance
A tolerance without an agreed measurement method is not a verifiable requirement. State whether a callout is verified by CMM, optical system, gauge or functional test, and agree the datum scheme. Two suppliers can both report in tolerance while measuring different things.
Ask for capability, not only conformance
First article inspection on the first production shots is the baseline; request it explicitly and ask that the report reference CTQ features by name. For molded parts, capability data across a run says more about the process than a single pass/fail sheet.
Tolerance feasibility is material-specific
Moisture conditioning, machining anisotropy and molded-in shrinkage differ by polymer and grade, so feasibility must be assessed per material and process rather than carried over from a similar part number. If a supplier quotes the same tolerance band for two polymers without asking about grade, wall section or process, that is worth a question.
Supplier Selection: Capability Evidence, Quality Systems and Total Cost
NIST's manufacturing extension guidance on supplier selection makes a point that applies directly: suppliers report their successes, so buyers should ask to see quality systems documentation and improvement methods rather than accept a self-reported success rate. The same rule covers capability claims.
Evaluate capability beyond the current part
Ask what the supplier can do outside your present scope: resin inventory control and segregation, clean handling, inspection capacity, sub-assembly, engineering change responsiveness. NIST notes that a higher unit price can still lower total cost of ownership when the supplier absorbs a step you would otherwise perform in-house - useful framing when a machine shop and a molder return quotes that are not line-for-line comparable.
Check the data path
Can the supplier accept digital purchase orders, return structured inspection data, and control drawing revisions without email ambiguity? A supplier that cannot control revision state will eventually ship to a superseded drawing.
Compare total cost, not unit price
Include material utilization, tooling amortization, inspection burden, freight and duties, inventory carrying cost, and the engineering hours spent chasing documentation. The lowest unit price is often not the lowest total cost, but the difference only shows up if you build the comparison.
Material Traceability From Resin Lot to Finished Component
Traceability is often described as a certificate in a folder. It is really a chain, and it has to survive every operation between the receiving dock and the parts you receive. A workable minimum record for each lot shipped contains:
- Resin manufacturer and exact grade designation
- Lot or batch identifier and date of manufacture
- Certificate of analysis or equivalent resin documentation for that lot
- Operations performed, in sequence, including secondary operations
- Inspection results for CTQ features, tied to the lot
- The link between resin lot and finished-part lot on the shipping documentation
The last item is the one most often missing. A supplier may hold perfect resin certificates and still be unable to say which molded or machined lot came from which resin lot. Ask for the linkage on the packing list, not only in the receiving file.
Control change at grade level
Grade, additive, colorant and site changes should trigger notification and, where device risk warrants it, re-qualification. Define the notification window in the supply agreement and name who receives it.
Address regrind explicitly
State whether regrind is permitted, at what ratio, how it is segregated and how it is recorded. Silence is read by some suppliers as permission, so the policy must be written and auditable. Undocumented resin is also a diversion and counterfeiting risk: a part that measures correctly can still be made from material nobody can trace.
Sourcing in China and Vietnam: What to Verify Before You Commit
Both countries appear on most shortlists for precision polymer work, and the ITA's Vietnam Country Commercial Guide notes healthcare as a growing sector as programs expand and household spending on treatment rises. That is market context, not evidence of any individual supplier's medical-device experience.
For transparency about our own position: Global Pioneer is the trading brand of CI Inernational Services Limited. Our China location is 3888 Hu Ming Road, Minhang District, Shanghai; factory operations in Vietnam are at W48H+WQ, My Hao District, Hung Yen, and those operations are under actual owner control, which is not the same as wholly owned legal title. Buyers should confirm the contracting entity and title position for their own program.
Before committing, verify in writing:
- Which legal entity signs the contract and issues the invoice
- Who holds title to tooling and on what transfer terms
- Where each manufacturing and inspection operation physically takes place
- How documentation is transmitted, controlled and retained
Scoping questions: info@globalpioneer.com.
Send the drawing, resin grade, CTQ features and target volume as one package, and ask for a written process recommendation, inspection plan and traceability commitment in the quotation. Comparing suppliers against the same written response shows quickly which ones are engineering the part and which are pricing a guess.
